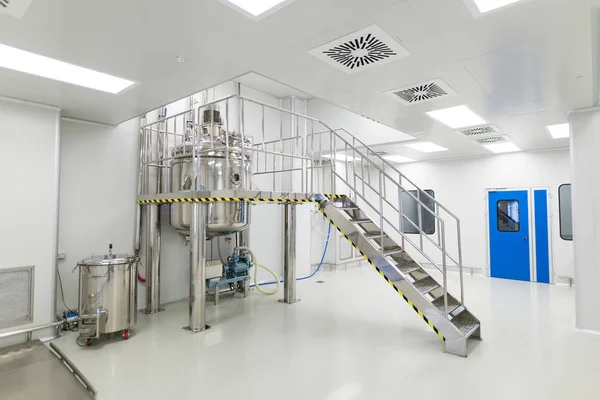

Cleanroom Wall & Ceiling Panels

Pharmintech wall and ceiling panels are self-supporting and designed specifically for cleanroom requirements.

They provide a smooth wall surface with curved corners, which makes cleaning easy while keeping dust particles, viruses, and microbial or fungal growth at bay.

This system includes a variety of features to improve cleanroom efficiency and user-friendliness, such as return air risers, covings, pressure gauges, cleanroom phones, and melaphones.

FEATURES & SPECIFICATIONS

• Panel Type: Progressive Cleanroom Panel
• Panel Thickness: 50 mm | 80 mm | 100 mm
• Insulation Options : PUF | PIR  | Mineral Wool | Honeycomb
• Max Panel Width: 1200 mm
• Sheet Thickness: 0.6 | 0.8 | 1.0 mm
• Sheet & Surface Finish: Pre-Painted GI ( PPGI ) | Powder Coated GI ( PCGI ) | Stainless Steel ( SS-304 ) | High Pressure Laminate ( HPL )
• Inter-connection: Aluminium | GI interconnecting profiles
• Coving: 50‘ Radius Aluminum powder coated snap fit coving with 3D & 2D Corners Load Bearing Capacity: Upto 150 Kg / Sqm
• Thermal Conductivity: 0.018 W/mK for PUF & 0.035 W/mK for Mineral Wool
