Pass Box

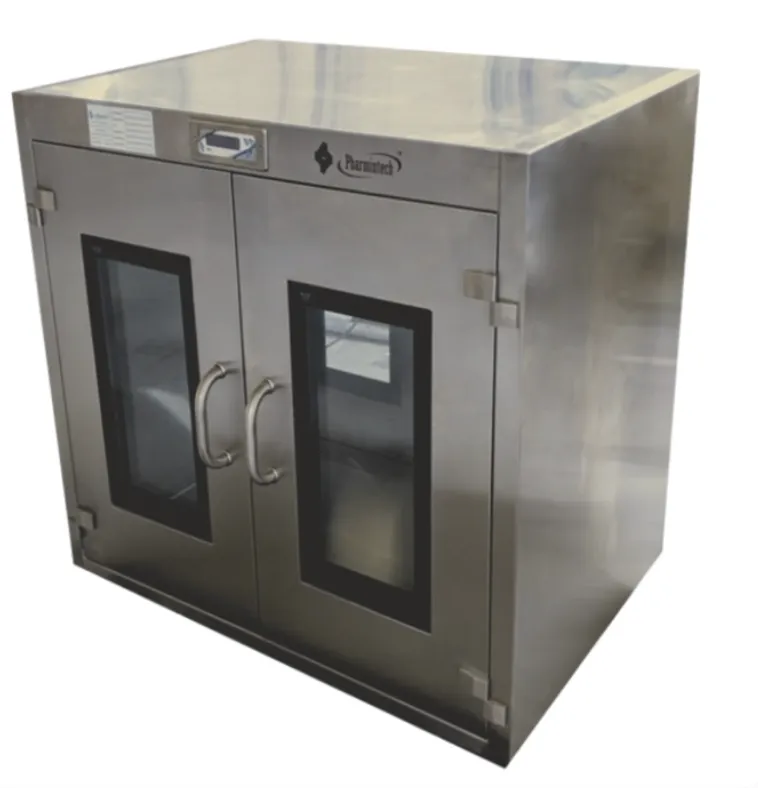

Static Pass Box
Key Specifications :
- Available in 4B Stainless Steel Finish with SS 304 & SS 316 Material
- Flush Double-walled Construction with Internal Coving
- Flush Doors with double-walled flush glass view panels
- Electro-Magnetic / Mechanical Interlocking
- Feather-touch Door Release Switch on either side
Variants:
- NON-Flameproof / Flameproof Type
- Straight Entry & Exit Type, L Type & 3 Way ' T’ Type

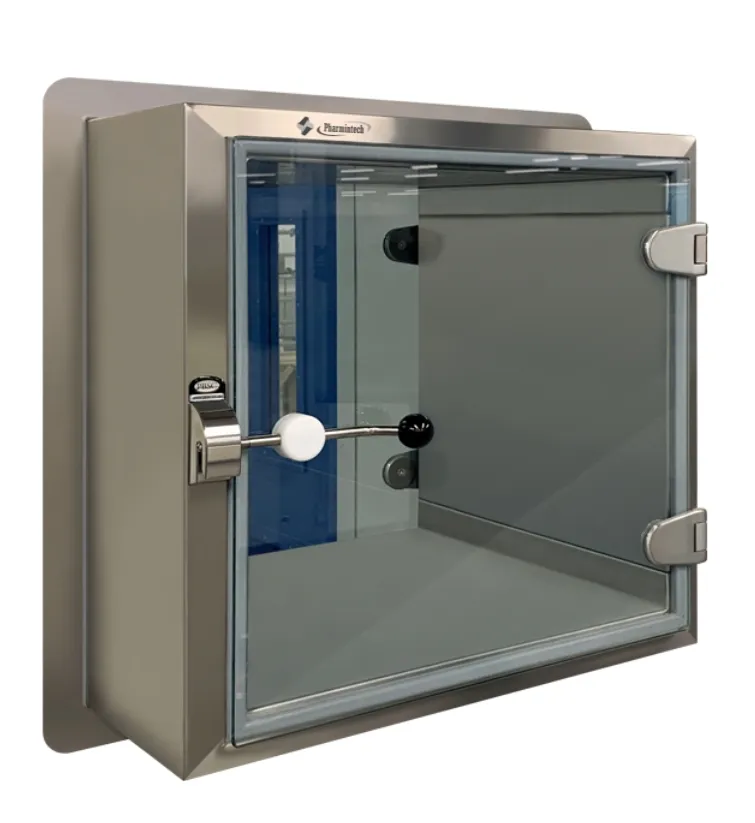

Static Airtight Pass Hatch
Key Specifications :
- Available in 4B Stainless Steel Finish with SS 304 & SS 316 Material
- Heavy-duty radial hinges for Glass Doors
- High Durability & High Strength Toggle Lock
- Food Grade D-type Gasket embedded in Toughened Glass Doors
Variants:
- NON-Flameproof / Flameproof Type
- Straight Entry & Exit Type, L Type & 3-Way ‘T’ Type

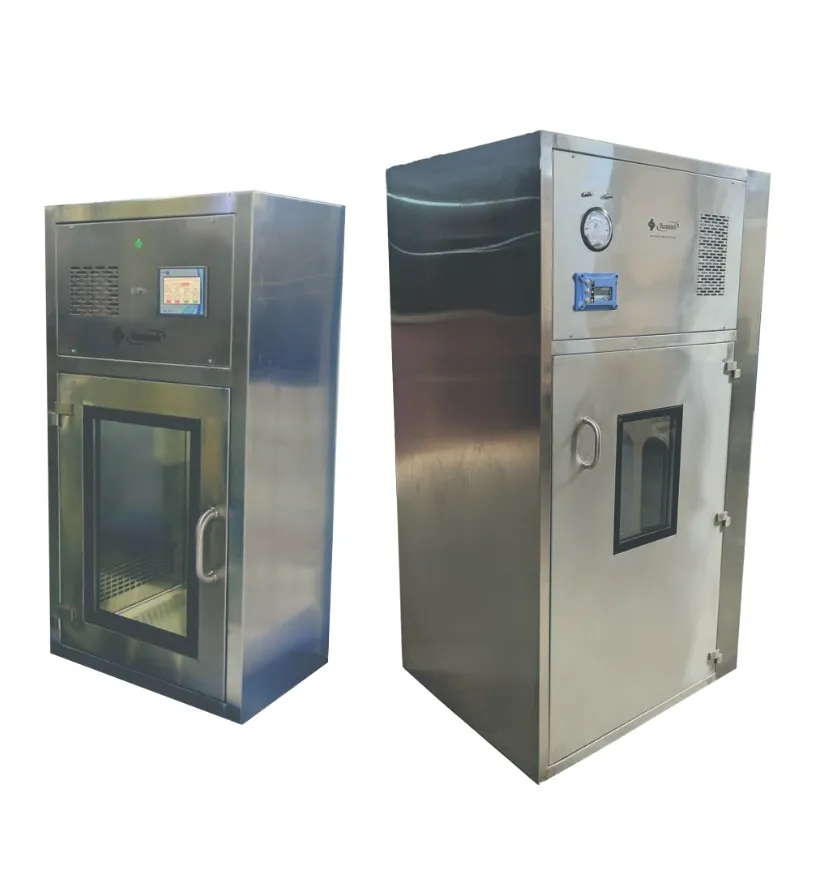

Dynamic Pass Box
Key Specifications :
- Available in 4B Stainless Steel Finish with SS 304 & SS 316
- Material Air cleanliness : 1SO Class 5 with Air Velocities : 90 + 20 % FPM
- Electro-Magnetic / Mechanical Interlocking
- Air Flow: Vertically Downwards - Re-circulatory
- Supply Filter: HEPA Filter - H-14 - Efficiency- 99.999% down to 0.3 micron
Variants:
- NON-Flameproof / Flameproof Type
- Straight Entry & Exit Type, L Type & 3 Way ‘T’ Type

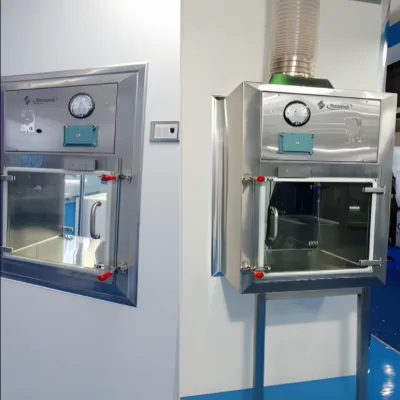

Negative Sink Dynamic Pass Box
It is equipped with an independent exhaust system connected with a BIBO filtration unit that keeps the transfer area under steady negative pressure during transfer. Toughened glass doors and food-grade gaskets seal the Pass box doors tightly, acting like clear guards that stop air leaks during every transfer. Also, Communication is key, which is why we've integrated a ‘PUSH-TO-TALK’ Intercom system in a Pass Box. With the help of this Intercom device, the communication between users of different rooms becomes clear and easy
Key Specifications :
- Available in 4B Stainless Steel Finish with SS 304 & SS 316 Material
- Electro-Magnetic / Mechanical Interlocking
- Exhaust Air Flow Through Circular / Rectangular Duct.
- Available with AND without a filtration system
- Integrated with the Intercom Device for communication between two rooms

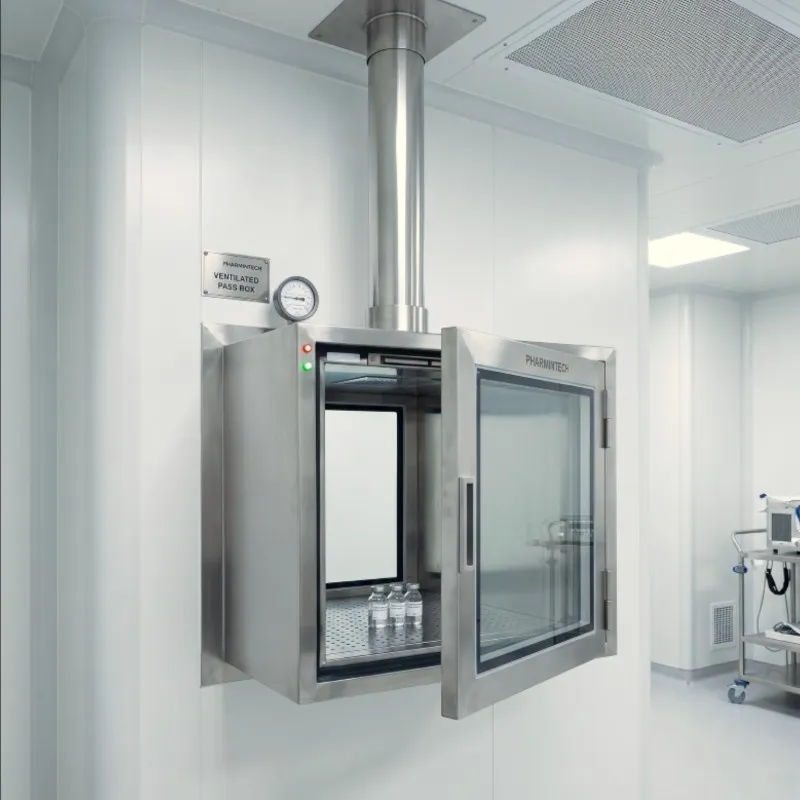

Ventilated Pass Box
Key Specifications :
- Construction: Available in 4B Stainless Steel Finish with SS 304 & SS 316 material
- Air Flow: Vertical Continuous exhaust to maintain dilution effect
- Exhaust System: Dedicated exhaust with duct connection to maintain fresh air circulation and prevent accumulation of contaminants
- Interlocking: Electro-Magnetic | Mechanical Interlocking for door safety
Variants:
- Non-Flameproof / Flameproof Type
- Straight Entry & Exit Type, L Type & 3 Way ‘T’ Type
Applications: Ideal for the transfer of materials where continuous ventilation is required to avoid particle build-up and ensure safe passage between rooms of different cleanliness levels

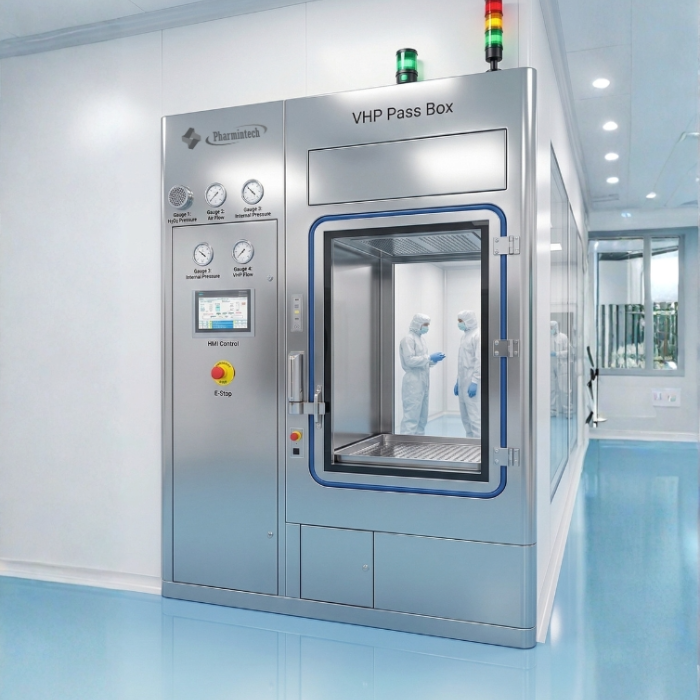

VHP Pass Box (Vaporized Hydrogen Peroxide Pass Box)
Key Specifications :
- Construction: Available in 4B Stainless Steel Finish with SS 304 & SS 316 material
- Decontamination System: Integrated VHP generator for bio-decontamination cycle
- Air Flow: Sealed chamber with controlled recirculatory airflow during sterilisation cycle
- Supply Filter: HEPA Filter H-14, Efficiency 99.999% down to 0.3 micron
Safety Features:
- Toughened glass doors with food-grade gaskets for airtight sealing
- Electro-Magnetic / Mechanical Interlocking to prevent accidental opening during VHP cycle
- Control System: Microprocessor-based cycle controller with safety interlocks & monitoring sensors
Variants: with integrated VHP generator & an external VHP connection port
Applications:
- Transfer of sterile materials into aseptic areas
- Ideal for pharmaceutical, biotech, and high-containment laboratories requiring validated decontamination cycles
