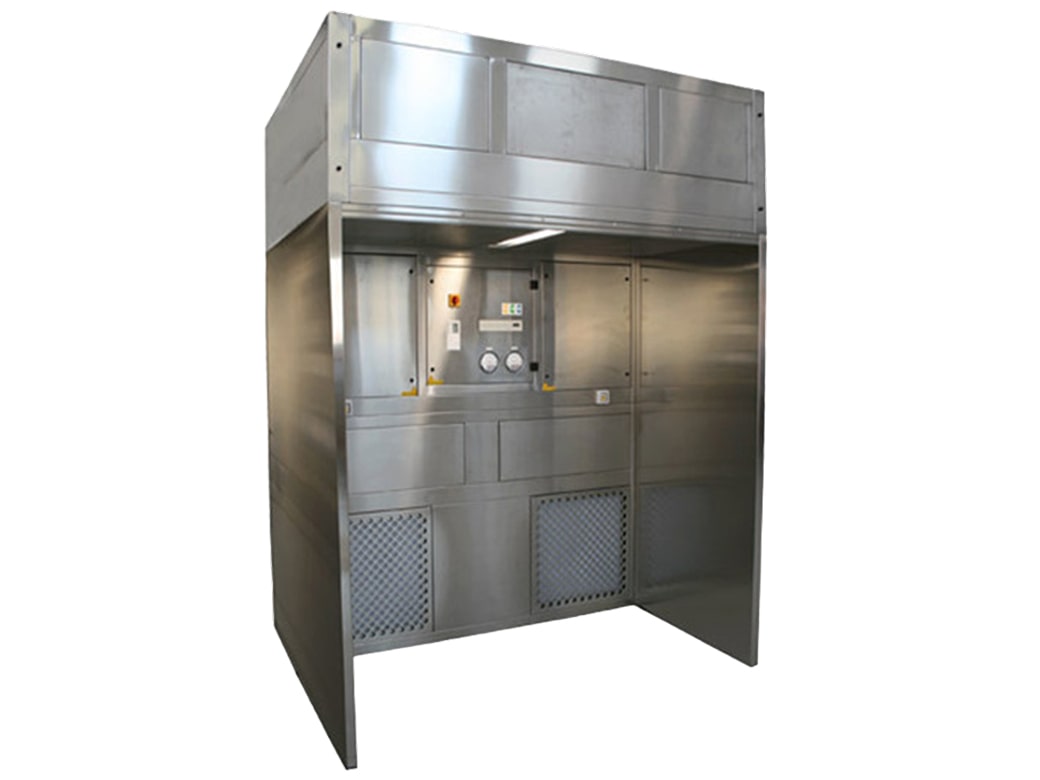

Dispensing Sampling Booth
Sampling Booth or Dispensing Booth is designed for providing highest level of protection from airborne contaminants generated during powder handling operations such as sampling, charging & dispensing. RLAF ( Sampling Booth OR Dispensing Booth ) provides Operator Protection, Product Protection, and Environment Protection.
The Sampling Booth OR Dispensing Booth operates on a re-circulatory airflow principle providing containment by air movement. A clean, constant, laminar down flow of Class 100 air is supplied in work area suppressing any dust clouds generated during open powder processing: removing and capturing airborne particles from the operator’s breathing zone.
Reverse laminar air flow workstations ( Sampling Booth OR Dispensing Booth ) are suitable for sampling / dispensing of powder and chemicals and to minimize the risk of contaminating the work zone and ensure health safety for person working with chemicals/powder. This equipment is based on the recirculation of air and ensures that the cloud formed by the material dispensed, is sucked in a natural pattern of movement, and arrested through prefilters. The air is then supplied back at the work zone through HEPA. After initial cycles, we achieve, class 100 hazard proof laminar movement of air and handling of material.
FEATURES
- Material of Construction : SS 304 / SS 316 / SS 316 L
- Triple Stage Filtration
- EU4-Prefilters (90% down to 5 micron)
- EU7-Internediate Filter (95% down to 3 micron)
- EU13- HEPA Filter-Supply / Bleed (99.997% down to 0.3 micron)
- Statically & Dynamically balanced Motor-blower with suspension arrangement to reduce noise level
- LED Lights & Differential Pressure Gauge for all 3 Filters
- ON/OFF Switch
- PAO Test Port
- 5/15 Amp Switch Socket for external equipment
OPERATING CONDITIONS
- Air cleanliness: ISO Class 5 (ISO 14644-1:1999 (E))
- Air Velocities: 0.45+_ 0.05mps
- Air Flow: Vertical – Re-circulatory
- Noise Level: Less than 67 dB
- Vibration Level: Minimum
- Minimum: > 300 lux
- Power Supply: 230V AC 1-0 50 HZ
TECHNICAL SPECIFICATIONS:
PRE‐FILTER (PRIMARY FILTER): -
- Filter Casing‐ SS 304/316 flange types.
- Efficiency‐ 90% down to 5 micron (EU‐4 Ratings.)
- Media‐ Three layers of High-Density Polyethylene Mesh along with AL. wire mesh.
INTERMIDIATE‐FILTER (SECONDARY FILTER): -
- Filter Casing‐ AL flange type.
- Efficiency‐ 95% down to 3 microns (EU‐7 Rating.)
- Media‐ Non‐woven synthetic media sandwiched between two layer of HDPE mesh.
SUPPLY FILTER:
- Filter Casing‐ Aluminum factory extruded section, Box type.
- Efficiency‐ (99.997% down to 0.3 micron).
- Media‐ Micro fiberglass paper media (Imported) pleated along with Hot Melt Glue.
BLEED FILTER: ‐
- Filter Casing‐ Aluminum factory extruded section.
- Efficiency‐ (99.997% down to 0.3 micron)
- Media‐ Micro fiberglass paper media (Imported) pleated along with Hot Melt Glue.
BLOWER MOTORS ASSEMBLY: -
- Electric Motors double ended shaft, Single phase, 240 volt, 50Hz.
- Impellers‐Aluminum, static & dynamic balanced, forward curve types.
- Blower casing‐ AL / GI / MS, centrifugal type with spring suspension.
ELECTRICAL: ‐
- LED light.
- 6/16 Amps, Aux. socket with s.s.cover plate.
- 16 Amps. Three‐pin top along with connection cable
OPTIONS AND ACCESSORIES:
- A wide range of configurations to suit any containment application
- 100 % Exhaust System
- Downflow Booth with Biological Safety Application
- Safety Screen with Pass Box integration for Biological Safety Appication
- Booth Compatible for Solvent use
- Pass box Integration
- Double skin solid side panels with/without view windows
- Stainless steel perforated grille for supply HEPA Filters
- Front Anti-Static PVC Curtains (for warehouse applications)
- Sodium Vapor Lamps
- Night Mode Operation
- Velocity display with alarms (audible and visible)
- Filter blocked alarms (audible and visible)
- Explosion proof electrics for Flame- proof applications
- PLC based Control System
- Once-through airflow systems
- Safe change Bag in/Bag out arrangement for filters
