Mist Shower

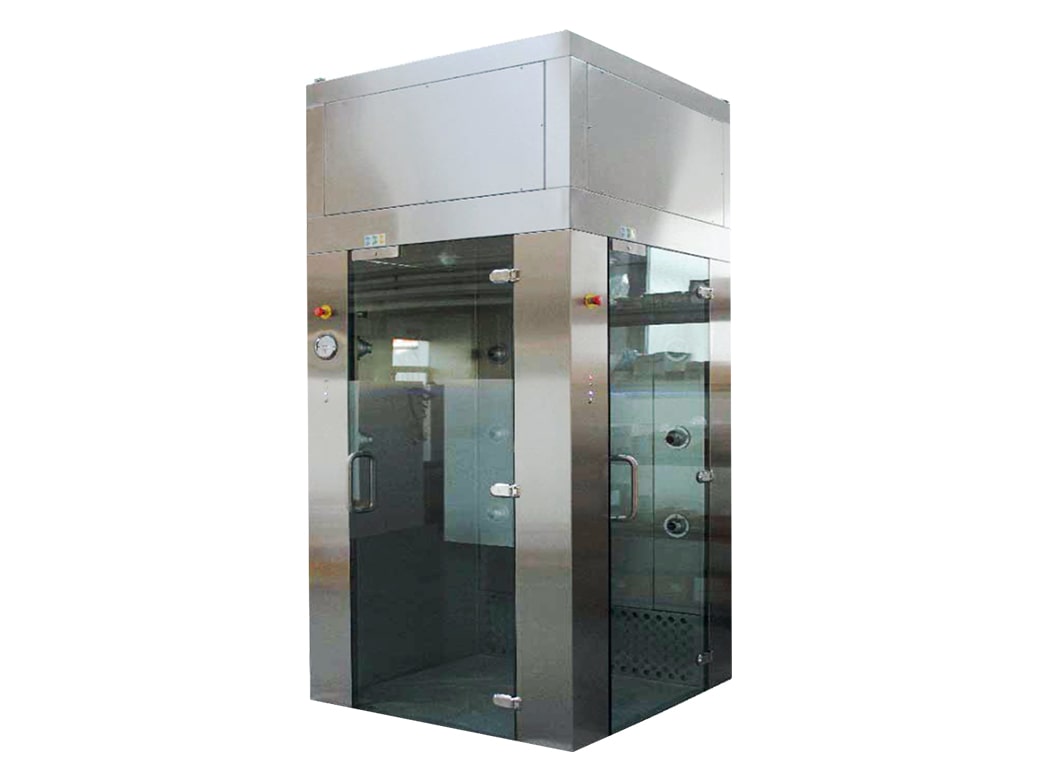

PHARMINTECH Mist Shower is a chamber installed at exit of Cleanroom where Hazardous Products like Onco Drugs, Hormonal injectables, Sterile product and likewise. It is designed to provide protection during de-gowning process while exiting the area. Wet surfaces will not shred any particles into atmosphere and thus the mist shower became a popular in the Pharmaceutical industry.

It is widely understood that the greatest source of particulate contamination in a cleanroom is from the operator. Mist Shower is typically installed as a physical barrier between operator change areas (grey areas) and the cleanroom (clean area) to help eliminate this primary contamination source.

The effectiveness of the system is primarily dependent on Mist cycle duration, operator technique during mist cycle, material and design of protective clothing, and the physical and chemicals properties of particulate.

FEATURE

  • Materials of Constructions : SS 304 / SS 316 / SS 316 L
  • Cleanroom Compatible
  • Door - Solid Doors with Electromagnet Interlocking
  • Air Cleanliness - ISO 5/Class 100
  • Mist Time - Programmable Time Spray
  • Door Model - Straight Thru, “L”-Type
  • Differential Pressure Gauge - 1 No.
  • ON/OFF Switch Control Panels
  • PAO Test Ports
  • Straight Entry – Straight Exit / 90° L Door Opening
  • Automatic as well as Manual Working

TECHNICAL SPECIFICATIONS:

Constructions :

  • Water Tank - Single Skin - MOC- SS 304, 18 SWG
  • Supply and Exhaust Unit - MOC- SS 304, 18 SWG, Single Skin
  • Ducting- SS 304, 22 SWG, Single Skin

Blower Motor

  • SISW Backward curved direct driven plug types, FLP Fans
  • 2 Pole, 3 Phase, Class 'F' Insulations
  • Capacity - Suitable for 2000 – 5000 CFM

Other Features:

  • SS 304, Eccentric Cam Lock arrangement with adjustment for filter locking
  • PU Ports and filter Upstream and Downstream side for PAO Injection, Pressure Ports
  • Acrylic view window with QRC and inside scanning probe fitted permanently
  • PVC Bag with 3 Sleeves and Silicon Cord at open end :
    -Air Shower Nozzles
    -MOC- SS 304
    -No. Of Nozzles- 07 Nos at right side.
    -07 Nos at left side.
    -02 Nos at top
  • OR

  • As per internal space available and considering covering
  • whole body of person inside.
  • Mist Shower Nozzles
  • MOC- SS 304,
  • No. Of Nozzles- 03 Nos at right side.
  • 03 Nos at left side.
  • 01 Nos at top
  • OR

  • As per internal space available and considering to cover
  • whole body of person inside.
  • Water Shower Nozzles
  • MOC- SS 304,
  • No. Of Nozzles- 01 No at right side.
    -01 No at left side.
    -01 No at top side.

Supply Air

For Air shower nozzles, mounted on walls inside the common pressurized chamber, air is supplied from out-door plenum through EU-6 and H-13 filtration and same is exhausted through EU-6 and H-13, safe change system (BIBO unit) installed at outdoor

Drain Outlet

Integrated drain pan for drain system will be provided and outlet of the same in ½" BSP threaded pipe within bottom of unit will be provided and same can be extended up to available common drainage system.

Entry & Exit Doors

SS 304, 38/40 mm Thk, double shin door with both side SS 304, 1 mm Thk sheet and door with PUF insulation of foam density 38-40 Kg/m³ density.

Electricals

Operation through microprocessor based sequential logic controller allowing for custom adjustment of mist cycle duration, door interlocking system, and air/water shower sequence. Separate/ Inside control panel to operate supply and exhaust filtration units, and Mist+ Air + water Shower unit. LED, panel fitting type lights as per require lux inside the chamber. Door release switches for both doors and inside emergency switch.

Electromagnetic door interlocking system in which at a time, one door can be opened.

Standard Features

  • Basic cabinets in SS 304/316, with integrated drain system.
  • Removable bottom SS perforated flooring.
  • Inside SS 304/316 Static Pass Box with used garment collection bin.
  • Two stage filtration supply and two stage filtration exhaust
  • SS 304, Mist, Water and Air nozzles to ensure complete coverage of inside
  • Unit will be divided in two parts in which in first part Mist & Water shower
  • and in second part Air Shower provision will be provided.
  • Entry and Exit door with door interlocking system.
