Laminar Ait Flow Units

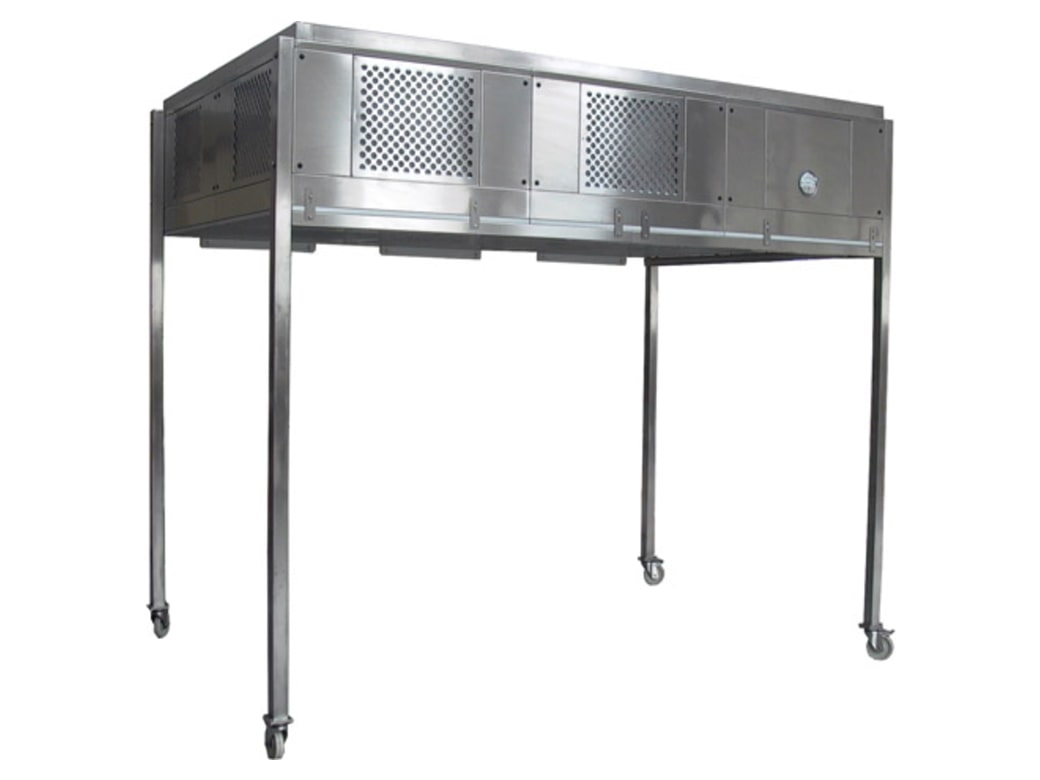

Vertical Laminar Air Flow Units - VLAF

PHARMINTECH Vertical LAF is designed for offering highest product protection by providing ISO Class 5 particle free work area for handling critical process.

It is suitable for the handling of non-hazardous products, sensible to dust and/or to contamination such as injectable medicines, cell and tissue cultures, food sample preparation for sterility testing, sterile packaging and I. V. pharmacy preparations as well as micromechanics, optics & electronics.

Vertical laminar workstations create areas supplied with a continuous flow of clean air to maintain a work environment that is free from dirt, particles, and toxic or noxious fumes. Laminar Air Flow Unit are designed to foster worker comfort, convenience, and productivity.

FEATURES

  • Material of Construction : Powder Coated MS / GI / SS 304 / SS 316 / SS 316 L
  • Glass / Polycarbonate Side panels
  • Stand OR Ceiling Mounted
  • Two Stage filtrations
  • EU6-Prefilters (95% down to 5 microns).
  • EU13-HEPAFilter (99.997% down to 0.3 microns)
  • LED Light
  • ON/OFF Switches
  • PAO Testing Ports
  • 5/15 Amp Switch Sockets for external equipments

TECHNICAL SPECIFICATIONS:

SUCTION FILTER: -

  • Filter Casing- AL flange type.
  • Efficiency- 95% down to 5 microns (EU-4 Rating.)
  • Media- Non-woven synthetic media sandwiched between two layers of High Density Polyethylene Mesh.

SUPPLY FILTER: -

  • Filter Casing- Aluminum factory extruded section.
  • Efficiency- (99.997% down to 0.3 micron)
  • Media- Micro fiberglass paper media (Imported) pleated along with Hot Melt Glue.

BLOWER MOTOR ASSEMBLY:

  • Electric Motor- double ended shaft, Single phase, 240 volts, 50Hz / Three phase, 415 volts, 50Hz.
  • Impellers-Aluminum, statically & dynamically balanced, forward curve type..
  • Blower casings- AL / GI / MS, centrifugal type.

ACCESSORIES:

  • Magnehelic pressure gauge for checking the pressure drop across the supply Minipleat Hepa.
  • Gas cock / Air cock
  • Hour meter connected to UV light.
  • PU caster with S.S. body and front lockable type wheel.
  • S.S.304 height levelers.

ELECTRICALS:

  • ON/OFF switches for b/w motor, tube light, UV light
  • LED light & UV light along with Hour meter.
  • 16 Amps. Three-pin top along with connection cable.

OPERATING CONDITION:

  • Air cleanliness: ISO Class 5 (ISO 14644-1:1999 (E))
  • Air Velocity: 0.45± 0.05mps
  • Air Flows: Horizontal
  • Noise Levels: Less than 67 dB
  • Vibration Levels: Minimum
  • Light Intensity: > 300 Lux
  • Power Suppling: 230V AC 1- Ø 50HZ
