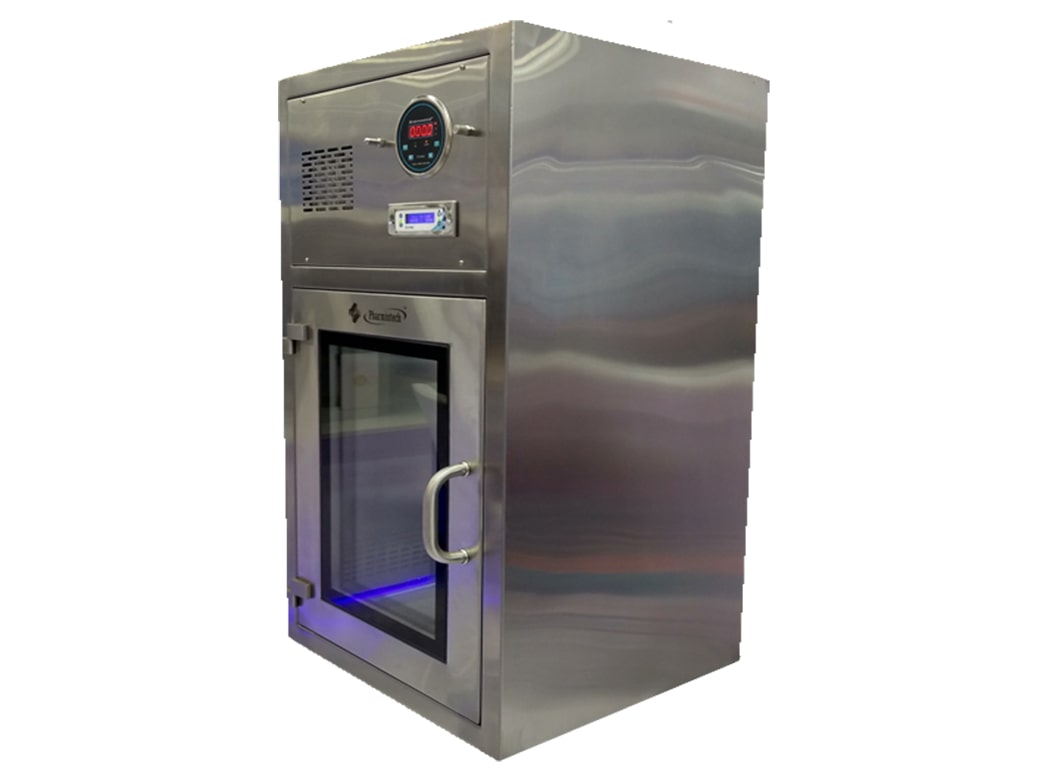

Dynamic Pass Box

Dynamic Pass Box

We are manufacturers, exporters and suppliers of dynamic pass box. We help exchange of material drive through a controlled situation however absent much work force development.

Moreover, these containers help in avoidance of contaminant entrance either in the clean rooms or between different grouped territories.

Dynamic pass box that we delivery in the market is available at reasonable costs. We are manufacturers, suppliers and exporters of dynamic pass box and air pressure balancing valve in Mumbai India to worldwide company

Dynamic Pass Box Features:

  • Class 100 Compatible
  • Two Stage filtration
  • EU6-Prefilter (95% down to 5 micron) for return air & fresh air intake
  • EU13-HEPAFilter (99.97% down to 0.3 micron) at supply position
  • Dynamic pass box - Blowers with delay system for reduce noise level
  • Doors with double wall blush glass visibility panel
  • SS 304 Handles & SS hinges
  • Internal coving for easy cleaning
  • Electro Magnetics Interlocking
  • Feather touch Door Release Switch on either side
  • Indicators on either side
  • Pharmintech make Differentials Air Pressure Balance
  • ON/OFF Switches for Motors
  • DOP Test Ports

Technical Specifications:

Suction Filter: –

  • Filter Casing- S.S.304/316 flange type.
  • Efficiency- 95% down to 5 microns (EU-4 Rating.)
  • Media- Non-woven synthetic media sandwiched between two layers of High Density
  • Polyethylene Mesh

Supply Filter: –

  • Filter Casing- Aluminum factory extruded section.
  • Efficiency- 99.997% down to 0.3 micron
  • Media- Micro fiberglass paper media (Imported) pleated along with Hot Melt Glue.

Blower Motor Assembly: –

  • 230 Volts, 50 Hz, Single-phase imported blower along with inbuilt motor.


  • 8/20w, Fluorescent light with milky diffuser.
  • 8/15w, UV Air Pressure Balance with Hour meter.
  • 12Volt, Electromagnet for door interlocking.
  • 12 Volt, Buzzer.
  • 12 Volt Indicator lamps.
  • 16 Amps. Three-pin top along with connection cable.

Operating Conditions:

  • Air cleanliness: ISO Class 5 (ISO 14644-1:1999(E))
  • Air Acceleration: 0.46± 0.05mps
  • Air Pressure Balance : Vertical – Re-circulatory
  • Noise Levels: Less than 68 DB
  • Vibration Levels: Minimum
  • Light Intensity: > 300 Lux
  • Power Provide: 230 V AC 1- Ø 50 HZ.


  • Pharmaceutical industries
  • Electronic industry
  • Chemical research laboratories
  • Semiconductor production
  • Food processing industry
