Laminar Flow Unit

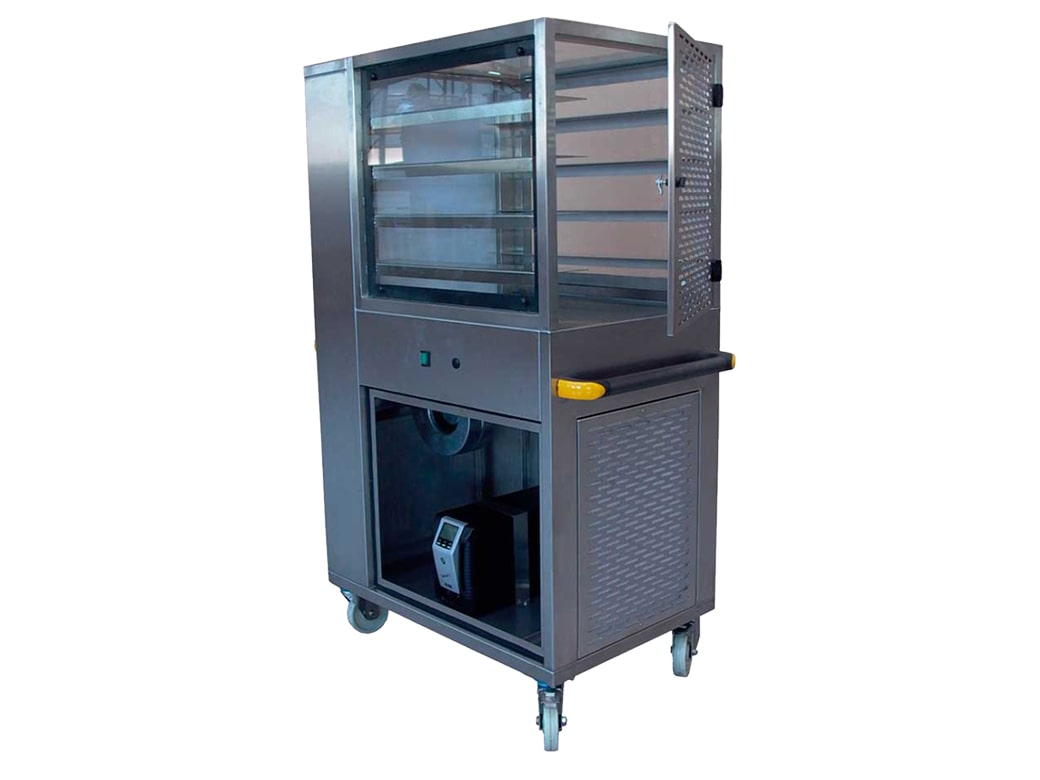

Mobile Laminar Air Flow Trolley - MLAF

PHARMINTECH Mobile Laminar Air Flow Trolley (MLAF) is designed for transporting sterile products under ISO Class 5 (Class 100) particle free work area. The work area is continuously supplied with positive pressure HEPA filtered re-circulated air flow.

FEATURES

  • Material of Construction : SS 304 / SS 316 / SS 316 L
  • Two Stage filtration
  • Battery back-up with inverter for 30 minutes
  • PU coated Lockable castor wheels
  • EU6-Prefilter (95% down to 5 micron) for return air & fresh air intake
  • EU13-HEPAFilter (99.997% down to 0.3 micron) at supply position
  • Statically & Dynamically balanced Motor- Blowers with suspension arrangement to reduce noise level for suction and booster
  • Differential Pressure Gauge: 1 No.
  • SS 304 removable shelves
  • SS 304 doors with double walled flush glass view panels
  • SS 304 handle for mobility
  • ON/ OFF Switches
  • PAO Test Port

TECHNICAL SPECFICATIONS :

SUCTION FILTERS:

  • Filter Casing- AL flange types.
  • Efficiency- 95% down to 5 microns (EU-4 Rating.)
  • Polyethylene Mesh.

SUPPLY FILTERS:

  • Filter Casing- Aluminum factory extruded sections.
  • Efficiency- (99.997% down to 0.3 micron)
  • Media- Micro fiberglass paper media (Imported) pleated along with Hot Melt Glue.

BLOWER MOTORS ASSEMBLY:

  • Electric Motor- double ended shaft, Single phase, 240 volts, 50Hz.
  • Impellers-Aluminum, statically & dynamically balanced, forward curve type.
  • Blower casings- AL / GI / MS, centrifugal type.

ACCESSORIES:

  • Magnehelic pressure gauge for checking the pressure drop across the supply Minipleat Hepa
  • Hour meters connected to UV light.
  • PU caster with S.S. body and front lockable type wheel.

ELECTRICALS:

  • ON/OFF switches for b/w motor, tube light, UV light
  • LED light & UV light along with Hour meters.
  • UPS & Battery

OPERATING CONDITIONS:

  • Air cleanliness: ISO Class 5 (ISO 14644-1:1999 (E))
  • Air Velocities: 0.45+_ 0.05mps
  • Air Flow: Horizontal / Vertical
  • Noise Level: Less than 67 dB
  • Vibration Level: Minimum
  • Light Intensity: > 300 Lux
  • Power Supply: 230V AC 1- Ø 50HZ
  • Options & Accessories
  • A wide range of configurations to suit any containment application
  • Velocity display with alarms (audible and visible)
  • Filter blocked alarms (audible and visible)
  • Explosion proof electrics for Flame-proof applications
  • Blower tripping alarms (audible and visible)
